Khoom Parameters
| Yam khoom | Specification |
|---|---|
| Khoom siv | 1045 Carbon Steel, 5140, 4340 Alloy Steel |
| Forging | Kaw -Die Precision Forging |
| Daim ntawv thov | Automotive, tsheb, hnyav- lub cav ua haujlwm |
| Kev kho cua sov | Normalized, Q&T, Txhaj Peened |
| Zoo | 100% Magnaflux tshuaj xyuas |
| MOQ | 10 pcs |
piav qhia

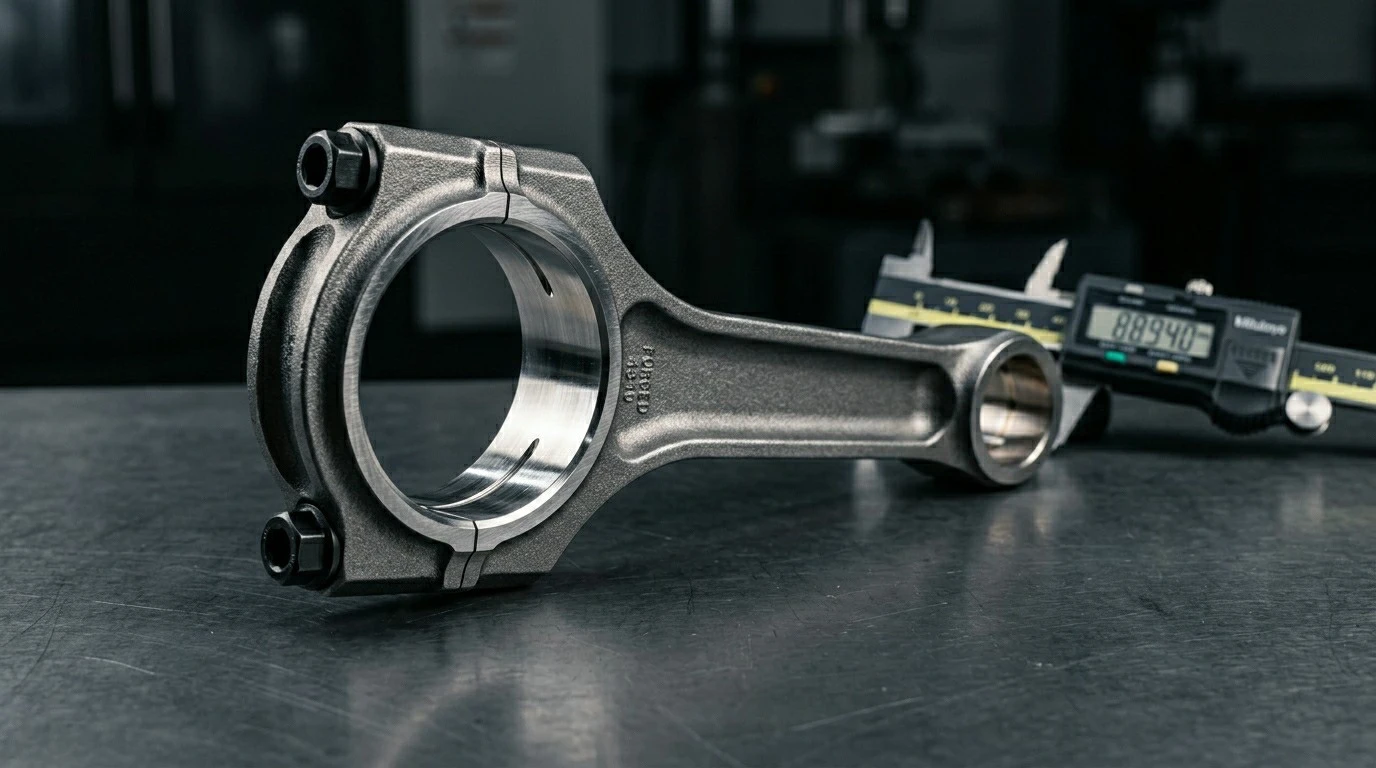

Cav txuas rods yog qhov tseem ceeb ntawm kev sib txuas ntawm piston thiab crankshaft nyob rau hauv combustion engines - txhais lus reciprocating rau rotary motion los ntawm txhua lub zog stroke. Lub zog muaj zog heev: lub pas nrig txuas hauv lub siab - kev ua tau zoo ntawm lub cav pom ntau lab tus siab - thauj mus los ib lub neej ua haujlwm. Failure txhais tau hais tias lub cav puas. Kaw- tuag forging ua rau I-beam cross-section zoo nrog cov nplej zoo. Qhov loj kawg thiab me kawg bores yog tiav machined kom nruj tolerances rau bearing haum. Lub pas nrig kab npoo feem ntau yog tua peened ntxiv compressive kev nyuaj siab uas txhim kho qaug zog tiv thaiv nyob rau hauv cyclic loading.
I-Beam vs. H-Beam txuas Rods
I-beam txuas rods yog sib dua rau tib lub zog - qhov I-beam cross-section siv cov khoom zoo rau khoov tsis kam. H-beam txuas rods muaj ob txoj kab sib txuas uas muab thaj chaw ntau dua rau piston-tus pin tus thawj sib cuag thiab nruj dua nyob rau hauv cov khoom ntim. Rau siab -RPM daim ntawv thov, kuv-beam feem ntau sib dua thiab txaus. Rau siab-boost, siab- lub cav torque, H-beam muab lub zog ntxiv uas xav tau los tiv thaiv deflection.
FAQ
Q1: MOQ?
A1: 10 pcs.
Q2: Khoom siv?
A2: 1045, 5140 carbon steel . 4340 alloy steel rau siab -kev ua haujlwm.
Q3: Kev kho cua sov?
A3: Normalized, Q&T. Txhaj peening txheem rau qaug zog li.
Q4: Kev soj ntsuam zoo?
A4: 100% magnetic particle soj ntsuam rau cov kab nrib pleb ua ntej xa khoom.
Q5: Kev cai configuration?
A5: Yog. Kev cai pas nrig ntev, loj kawg loj, me kawg loj, nqaj profile.
Q6: Kev ua haujlwm zoo?
A6: Yog. Forged los ntawm 4340 alloy steel nrog txhaj tshuaj peening rau kev sib tw thiab siab -kev ua tau zoo xyaw.
Zoo tsis yog -negotiable nyob rau hauv precision manufacturing. Txhua yam khoom raug soj ntsuam nruj ntawm txhua theem ntawm kev tsim khoom.
- TIAB SA 16949- Automotive zoo tswj system rau kev nyab xeeb- cov khoom tseem ceeb
- PIB / PPF- Cov ntaub ntawv pov thawj ntawm Cov Txheej Txheem Ntau Lawm muaj nyob rau ntawm kev thov
- AIAG Core Tools- APQP, FMEA, SPC, thiab MSA cov ntaub ntawv ntawm kev thov
- Kev tshuaj xyuas CMM- Coordinate ntsuas rau complex geometry thiab nruj tolerances
- Nto Roughness Measurement- Ra, Rz, thiab Rt daim ntawv qhia nrog txhua daim ntawv tshuaj xyuas
- Passivation / Electropolishing- ASTM A967 cov txheej txheem rau corrosion kuj
- Khoom siv Traceability- Kev ntsuas kub ntawm cov khoom siv raw mus rau qhov ua tiav
Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:
- Billet Cua sov- Precision cua sov rau forging kub nrog ntsuas kub
- Forging- Kaw-tuag, qhib- tuag, lossis lub nplhaib dov mus ze rau -net shape
- Trimming / Piercing- Flash tshem tawm thiab ua haujlwm bore
- Kev kho cua sov- Los ntawm -hardening, case-hardening, los yog hnub nyoog- hardening raws li xav tau
- Finishing Machining- CNC machining, sib tsoo, lossis super-ua tiav rau qhov kawg qhov ntev
- Kev kho saum npoo- Anodizing, plating, lossis txhaj tshuaj peening raws li tau teev tseg
- Kev Tshawb Fawb & Kev Xeem- Dimensional check, hardness test, deg soj ntsuam
- Ntxuav & Ntim- Degreasing, tiv thaiv xeb, thiab tiv thaiv ntim
